New Sony Ericsson USB Drive Icons |
Sirhackalot
Joined: Aug 10, 2004
Posts: 463
From: Bermuda, Uk
PM, WWW
|
Ok well I have had this for a while so I thought I might as well share this with Esato's k800, k610, k750, w810, w900, w700, w800, m600i, p990i users. This is just simple way of overriding the stock Windows USB Drive Icon.
My K750i USB Drive Icon
The above screenshot of the k750i usb icon is an example of what the above handsets in bold will look like!
Get Drive Icons For You Handset
I have created a space for Esato on my ftp server were you can obtain the usb files. On the ftp server you will find Folders for each handset supported. In thoes folders you will find the necessary files to get started. The Esato section is SSL/TSL protected thus prompting for username and password. Click Here for FTP Server.
User Name : esato@nuke-evo
Password : esato_members
How to use the files After downloading
Scroll down to Step 3 in How to create your own USB drive icon
Read part b, second sentence.
How to create your own USB drive icon
To create a custom USB drive icon for your headset you will need:
*An image to display as an icon
*An image Format Converter(target format .ico)
*An image Resizer
Step 1:
Open the image resizer and resize the image between (32x32)-(64x64)
Tip: Make sure that the image is near 4:3 ratio or a square to start with then a 16:9. Reason is that when minimized to (??x??) it will look stretched.
Step 2:
Open the image Format Converter and convert the image to a (.ico) Then rename the image to what you desire.
Step 3:
a. Open Note Pad and type the following or Copy&Paste.
[autorun]
icon=xxxxx.ico
b. Then go to file. Select Save As then rename it to "autorun.inf". Then finally put the "xxxxx.ico" and "autorun.inf" in the root directory of the drive (Put in same director as DCIM, misc, mp3, MSSEMC).
Disconnect the phone From the computer then reconnect it to see the new icon.
To Hide the autorun.inf & ????.ico highligh both files and right click the file and tick hidden.
If you have any difficulty using or creating a USB drive icon pm me what you have done so far, and what your problem is. I will also do phone request, so if you wan't another model added to the pack let me know!
Desktop Modification
This was created because of a few individuals who admired the desktop modification originally used with the USB Icons.
To obtain the software used to give you windows a 3d effect you will need the following program found here. Login using the above username and password. Once logged in you should find a new folder called "Desktop Modification". Enter the folder and drag Madotate.zip to desktop.
_________________
Sony Ericsson For Life
Proud Owner OF
 T68i p800 K750i K800i
T226 K700 V800 W900i
[ This Message was edited by: Sirhackalot on 2006-09-30 02:23 ] |
|
|
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
COOL
|
k4m!k4ze
Joined: Oct 02, 2004
Posts: > 500
From: CBE
PM |
Neat ! And nice 3D desktop too
btw thats handset not headset, u got me confused for a while there...
If at first you don't succeed, destroy all evidence of your attempt !! |
xan K
Joined: Jun 15, 2006
Posts: > 500
From: Republica Dominicana
PM |

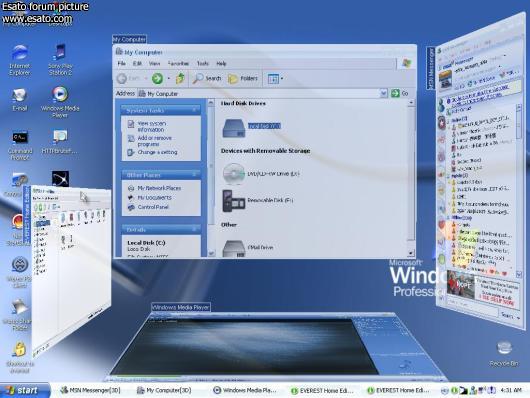

GREAT! Really nice 3D desktop. what are you using for it?
|
Sirhackalot
Joined: Aug 10, 2004
Posts: 463
From: Bermuda, Uk
PM, WWW
|
Nice to see that you guys like it.
@ k4m!k4ze Thanks mate, I've been saying headset for some time now!
@ xan K it's for windows xp but im currently running vista beta's so thats an old screenshot.
Every one post comments so this thread is visible to users in different time zones tomorrow.
_________________
Sony Ericsson For Life
Proud Owner OF
T68i p800 K750i K800i
T226 K700 V800 W900i
[ This Message was edited by: Sirhackalot on 2006-09-06 04:58 ] |
mcrosser
Joined: Oct 11, 2005
Posts: > 500
From: Peru
PM |
nice post Sirhackalot ! it also works with other removable USB devices, such as my Network Walkman, just put the files on the root directory and woala !! cheers.
AVAILABLE - advertise here!!  |
Sirhackalot
Joined: Aug 10, 2004
Posts: 463
From: Bermuda, Uk
PM, WWW
|
Yea theres no reason why it shouldn't work on any USB device.
|
qwerty12
Joined: Apr 29, 2006
Posts: 262
From: lonDON
PM |
Thank you for this. Nice icons.
Unbranded+Unlocked.FW:R4EA031 | Mods:Too Much.
Elfpack etc. Aka qwerty111 |
Sirhackalot
Joined: Aug 10, 2004
Posts: 463
From: Bermuda, Uk
PM, WWW
|
New handset added :
W810i
_________________
Sony Ericsson For Life
Proud Owner OF
T68i p800 K750i K800i
T226 K700 V800 W900i
[ This Message was edited by: Sirhackalot on 2006-09-07 09:35 ] |
shindecs
Joined: Aug 03, 2006
Posts: 25
From: India -> Maharahstra -> Pune
PM |
Nice post, thanks |
Sirhackalot
Joined: Aug 10, 2004
Posts: 463
From: Bermuda, Uk
PM, WWW
|
New handset added :
W700i
|
QuickShare
Joined: May 06, 2006
Posts: > 500
From: MYR
PM |
im attracted by the desktop.
My Flickr Site.. Flickr.comMost Popular Newbie 2006 |
nalbagli
Joined: Jul 09, 2006
Posts: 302
PM |
Could someone explain me what is this for?...I am not a NATIVE english speaker. |
QuickShare
Joined: May 06, 2006
Posts: > 500
From: MYR
PM |
it's about changing your pc's USB Drive Icons to the phone that you desire with  at first i thought that Sirhackalot will teach us how to do the desktop in 3D look
My Flickr Site.. Flickr.comMost Popular Newbie 2006 |
g-roxx0304
Joined: Nov 20, 2005
Posts: 127
PM |
All right!!
Thanks,Sirhackalot. |
|
|
