Modded Camera Driver for Sony Ericsson w910 |
brazzuka's
Joined: Nov 14, 2007
Posts: > 500
From: South World-Antartida-Sweden
PM, WWW
|
For all developers modders and users Here you can find Modded Camdriver for Sony Ericsson w910 model OmniVision OV2640_SHINOBU 2MPixel
[ This Message was edited by: brazuka on 2009-02-04 00:43 ] |
|
|
brazzuka's
Joined: Nov 14, 2007
Posts: > 500
From: South World-Antartida-Sweden
PM, WWW
|

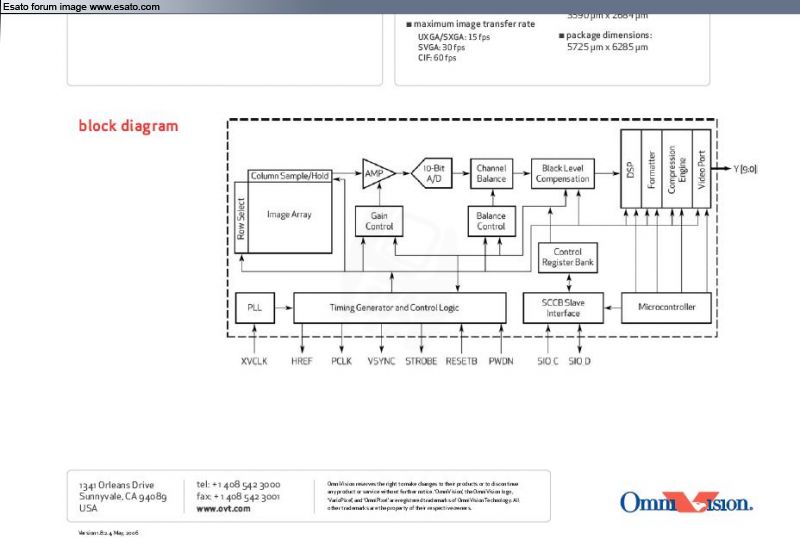

OV2640 Color CMOS UXGA (2.0 MegaPixel) CameraChip™ Image Sensor with OmniPixel2™ Technology

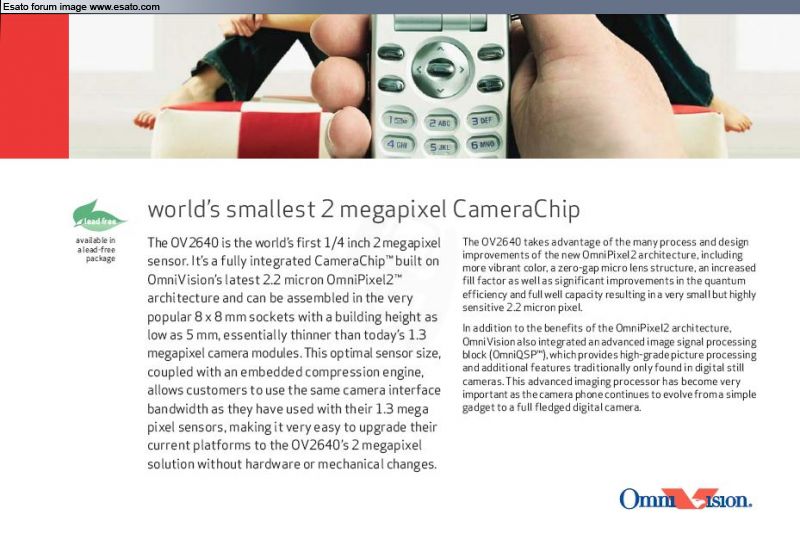

The OV2640 CameraChip™ image sensor is a low voltage CMOS sensor that provides the full functionality of a single-chip UXGA (1632 x 1232) camera and image processor in a small footprint package. The OV2640 provides full-frame, sub-sampled, scaled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.
This product has an image array capable of operating at up to 15 frames per second (fps) in UXGA resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, white pixel canceling, noise canceling, and more, are also programmable through the SCCB interface. The OV2640 also includes a compression engine for increased processing power. In addition, OmniVision CameraChip products use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable color image.

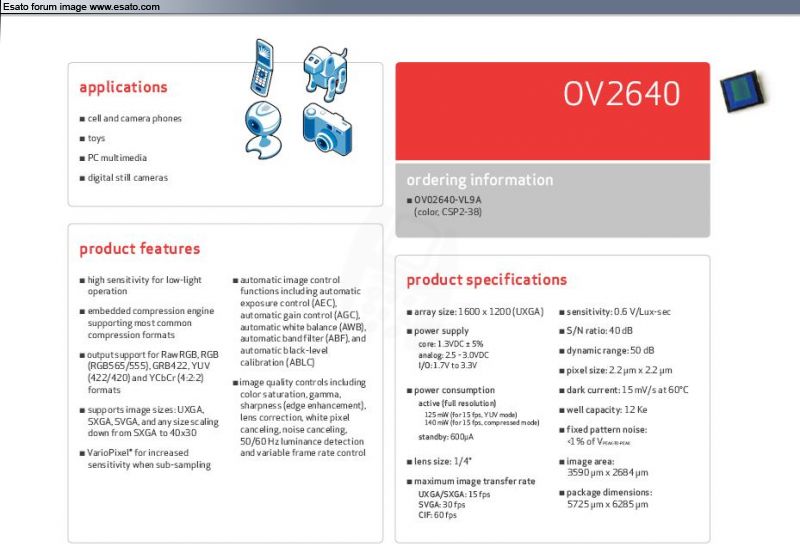

Product Features:
high sensitivity for low-light operation
low operating voltage for embedded portable apps
output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats
supports image sizes: UXGA, SXGA, SVGA, and any size scaling down from SXGA to 40 x 30
automatic image control functions including Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
image quality controls including color saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection
zooming, panning, and windowing functions
internal/external frame synchronization
variable frame rate control
supports LED and flash strobe mode
supports scaling
supports compression
embedded microcontroller
line optical black level output capability
video or snapshot operation
Product Specifications:
resolution:
UXGA SVGA and below
package options:
38-pin CSP2
optical format:
1/4”
pixel size:
2.2 x 2.2 µm
frame rate:
15 fps full res
output format:
YUV RGB Raw RGB Data Compressed Data
power consumption:
125 mW (YUV)
140 mW (compressed)
applications:
camera/video phones digital camcorders digital still cameras webcams games/toy
[ This Message was edited by: brazuka on 2009-01-04 11:59 ] |
brazzuka's
Joined: Nov 14, 2007
Posts: > 500
From: South World-Antartida-Sweden
PM, WWW
|
Sony Ericsson Camera Driver w910 model OmniVision OV2640 2MPixel
Update 2008-04-29
v1.7_Standard™
Features v1.7_Standard™:
-New Power Sequence
-Master Clock™ for w910
-New JPEG buffer sizes compression
-New JPEG Qtable
-New Exposure
-Implemented 24mhz clock
Download:
http://www.4shared.com/file/45795883/ff808bd9/v17_Standard.html
Sony Ericsson Camera Driver w910 Model Omnivision 6680/Premier/Foxconn Secondary Videocall Camera VGA CAM
Update 2008-08-11
v3.25_Videocall Camera VGA CAM for w910
-Now Video Recording with Secondary Front Camera or Videocall Camera VGA CAM
-Video Recording 40fps to 45fps
-Time Video Recording 32s by mms
-Implemented some functions in Automode start cam OVT suggestion
*if necessary change the values for the functions
ONLY WORKS FOR SENSOR VGA CAM!!!
=> Normal colors
=> Warm colors
=> Skin tones 1
=> Register dump
=> PSA Color settings
=> Skin tones 2
=> LCC compromise
=> Skin tones 3
=> LCC Flextronics
=> Increased contrast
=> Decreased contrast
=> Default contrast
=> LCC Foxconn
*Based original driver front camera/videocall camera w910
Tutorial: How record video w/ front cam by Sombra
link:
http://www.esato.com/board/viewtopic.php?topic=181234
v3.25_Videocall Camera VGA CAM for w910
Download:
http://www.4shared.com/file/8[....]l_Camera_VGA_CAM_for_w910.html
[ This Message was edited by: brazuka on 2009-02-04 00:46 ] |
Sandur-Rx
Joined: May 14, 2008
Posts: 1
PM |
I downloaded this but i cant get it on my phone. I have the white w910I with the 033firmware
I tried xs++but it cant connect to my phone and when im trying to use setool i get even whorse because i realy dont understand that program.
This was with the download but i dont realy understand what i should do.
I speak dutch so it is al litle difficult so it could just be me:p
Install Guide:
How to Proceed in CID 50/51/52 with the program *SETOOL/PHONEXS++/FAR:
*SETOOL USER GUIDE
1-Unpack the folder tpa_ifs
2-Copy in its tpa_ifs this way: ifs/settings/camera
3-Copy the file "camdriver0" the latest version to the place indicated
4-After passing your tpa_ifs compressed in *.Zip by SETOOL
5-Press the button Flash
Maybe sombody can explain it a litle better for me.
Sorry for my bad englisch. |
amipop
Joined: Feb 19, 2008
Posts: 9
PM |
yeah..you right..how can i upload the camdrive to my w910 ?? |
ZeneticX
Joined: Feb 02, 2008
Posts: 112
From: Malaysia
PM |
u cant upload it into the phone (w910) for now bcoz the current xs++ doesnt support it.u will hav to wait for the next version.
anyway nice cam driver here.juz hav to wait for xs ++ now |
StevenC
Joined: Aug 23, 2008
Posts: > 500
From: NY
PM |
So any update up to now? I'm quite dumb in flashing phone and the software used. I long for the day where I can finally improve my W910i camera pictures so I'm crossing fingers
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
W910 is DB3150 phone and the only current available options for opening it's filesystem (to change the camdriver) are:
- setool
- totalgsm
which are not free...
|
pete910i
Joined: Jun 08, 2008
Posts: 98
From: Sydney, Australia
PM |
we can finally use it ! |
coba
Joined: Mar 01, 2008
Posts: 466
From: Sabah, Malaysia
PM, WWW
|
hey brazuka any screenshot?? post some pics taken by ur cam driver so everyone can enjoy
THIS USER HAS BEEN BANNED BECAUSE OF HIS TALENT |
StevenC
Joined: Aug 23, 2008
Posts: > 500
From: NY
PM |
does anyone have the original w910 camdriver?
|
coba
Joined: Mar 01, 2008
Posts: 466
From: Sabah, Malaysia
PM, WWW
|
On 2008-11-01 06:56:12, StevenC wrote:
does anyone have the original w910 camdriver?
try this --> http://www.4shared.com/file/5[....]mdriver_original_w910.html?s=1
THIS USER HAS BEEN BANNED BECAUSE OF HIS TALENT |
pete910i
Joined: Jun 08, 2008
Posts: 98
From: Sydney, Australia
PM |
mmm all i've noticed so far is that the camera is more responsive when you are in moton.
the quality is still very poor as u'd expect for a 2mp camera of low quality such as the one on w910i.
and the size is a lot bigger avg 450-600 kbs.
but i still think its better than original LOL
[ This Message was edited by: pete910i on 2008-11-01 11:43 ] |
coba
Joined: Mar 01, 2008
Posts: 466
From: Sabah, Malaysia
PM, WWW
|
same here..back to original!
THIS USER HAS BEEN BANNED BECAUSE OF HIS TALENT |
hfmls
Joined: Mar 17, 2008
Posts: 489
PM |
dont let this die
brazuka can u tell please wich values do you edit?
can u tell me in wich line did u edit the night mode pictures?
iso and shutter.
ajude pf |
|
|
